Slitter Grooved Roller

Description of Slitter Grooved Roller

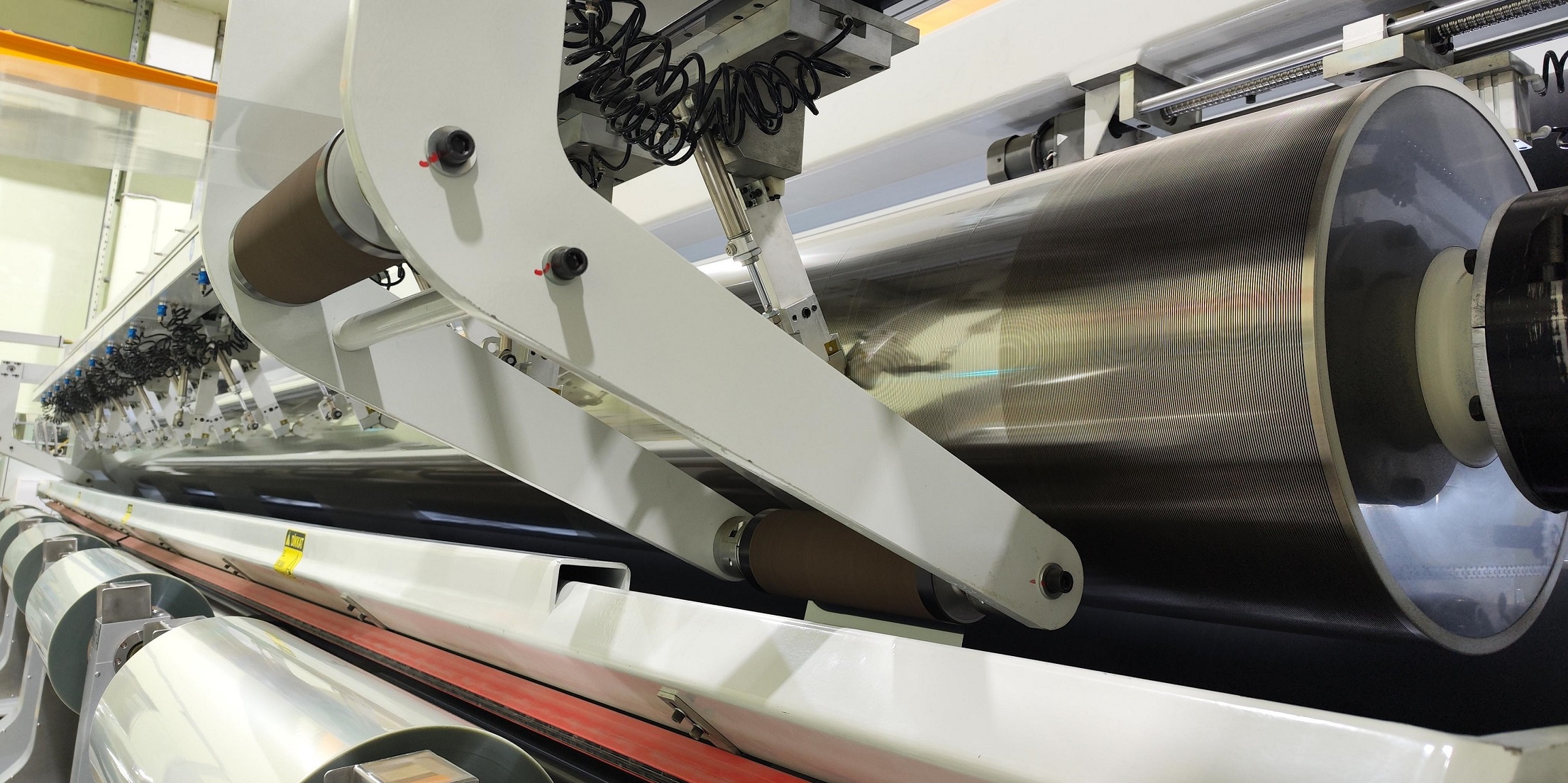

Slitter grooved roller ‌ is a key component that is primarily used for precise slitting of films during the slitting process. The design and function of the slitter groove roller are crucial for improving the efficiency of high slitting and product quality.

The surface of the slitter groove roller is covered with regular grooves. In high-speed slitting machines, the main function of the slitter groove roller is to precisely slit films. As the film material passes through the slitter grooved roller, the blade falls into the groove and slit the film longitudinally, ensuring slitting accuracy and efficiency.

This design can effectively reduce the drift phenomenon of materials during the slitting process, and is particularly suitable for slitting films such as BOPP and BOPET.

Slitter Grooved Roller Specifications

(1). Maximum length: 13000mm

(2). Maximum diameter: 2000mm

(3). Maximum speed: 2000m/min

(4). Application: Used in high speed slitter machine

(5). Slitter grooved roller can be manufactured according to user's drawings.
